Implementing Dynamic Leaderboards: General and Weekly Rankings in asterisk-app

Introduction Our asterisk-app project recently saw the implementation of general and weekly ranking systems. This feature is crucial for driving user engagement and fostering a sense of competition, providing users with real-time insights into their performance relative to others. Effective leaderboards not only motivate users but also add a dynamic layer to the application experience.

The Challenge

Implementing dynamic ranking systems comes with several technical considerations:

• Data Aggregation: Efficiently calculating and aggregating scores across various user activities, both for an overall standing and within a specific weekly timeframe.
• Performance: Ensuring that fetching and displaying rankings, especially for a large user base, remains fast and responsive without degrading the user experience.
• Real-time Updates: Providing up-to-date rankings requires a robust mechanism to push updates to the UI, or at least refresh data frequently without constant polling.
• UI Responsiveness: Displaying potentially large lists of ranked items in an intuitive and performant manner across different devices, a common challenge in mobile-first applications.

The Solution

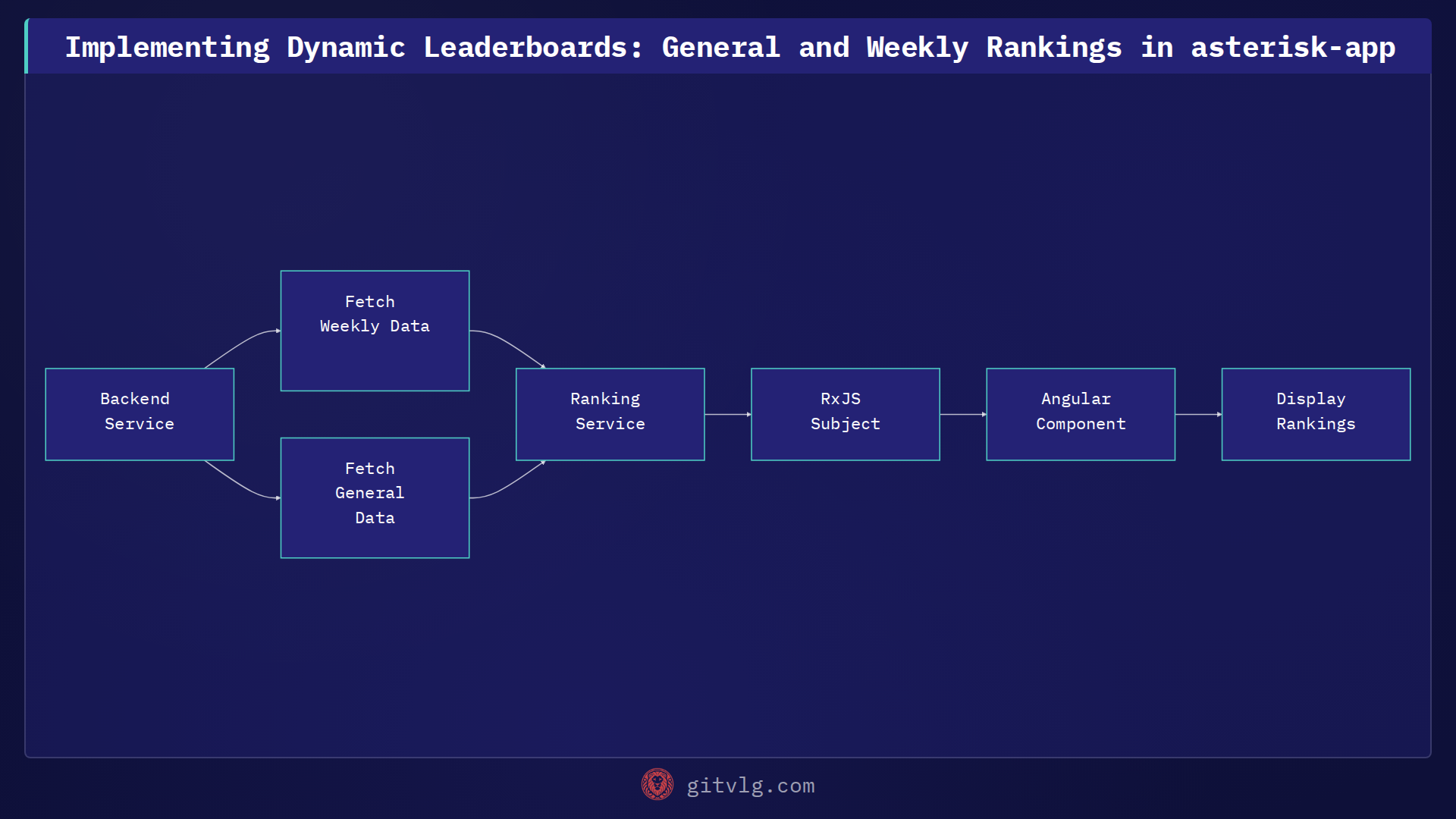

To address these challenges, we leveraged Angular and Ionic's capabilities, combined with RxJS for reactive data handling. The core of the solution involved creating dedicated services to fetch ranking data and using observable patterns to update components efficiently.

Our approach uses a RankingService to abstract data fetching from the backend. This service exposes Observable streams for both weekly and general rankings, allowing components to subscribe to these streams and reactively update their display when new data arrives. This ensures a responsive and dynamic user interface, crucial for any leaderboard feature.

// ranking.service.ts
import { Injectable } from '@angular/core';
import { HttpClient } from '@angular/common/http';
import { Observable, BehaviorSubject } from 'rxjs';
import { tap } from 'rxjs/operators';

interface RankingItem {
  id: string;
  name: string;
  score: number;
}

@Injectable({
  providedIn: 'root'
})
export class RankingService {
  private weeklyRankingsSubject = new BehaviorSubject<RankingItem[]>([]);
  weeklyRankings$: Observable<RankingItem[]> = this.weeklyRankingsSubject.asObservable();

  private generalRankingsSubject = new BehaviorSubject<RankingItem[]>([]);
  generalRankings$: Observable<RankingItem[]> = this.generalRankingsSubject.asObservable();

  constructor(private http: HttpClient) { }

  fetchWeeklyRankings(): void {
    this.http.get<RankingItem[]>('/api/rankings/weekly')
      .pipe(tap(data => this.weeklyRankingsSubject.next(data)))
      .subscribe();
  }

  fetchGeneralRankings(): void {
    this.http.get<RankingItem[]>('/api/rankings/general')
      .pipe(tap(data => this.generalRankingsSubject.next(data)))
      .subscribe();
  }
}

In this example, the RankingService uses HttpClient to retrieve data from specific API endpoints (/api/rankings/weekly and /api/rankings/general). BehaviorSubject is used to store the current state of the rankings and emit updates to any subscribed components, making the data flow entirely reactive. This pattern streamlines data management and ensures the UI always reflects the latest ranking information.

Key Decisions

1. Dedicated Backend Endpoints: Separate API endpoints were established for weekly and general rankings. This allows for optimized database queries and data aggregation tailored to each specific ranking type, reducing payload size and improving response times.
2. Reactive Data Streams with RxJS: Leveraging BehaviorSubject and Observable from RxJS ensures that ranking data is managed as a stream. This enables components to subscribe to ranking updates and automatically re-render without manual intervention, leading to a highly responsive user interface.
3. Ionic UI Components for Display: Utilizing Ionic's rich set of UI components, such as ion-list and ion-item, provided a consistent, performant, and mobile-friendly way to display ranking data. This ensures a great user experience across various devices.

Results

The implementation of the general and weekly ranking systems has provided asterisk-app users with clear, up-to-date competitive overviews. This feature is expected to significantly boost user engagement, encourage active participation, and enhance the overall stickiness of the application by tapping into users' natural competitive spirit. The reactive data handling also means the UI feels fast and current.

Lessons Learned

Building dynamic, data-driven features like leaderboards highlights the importance of choosing the right data streaming and state management patterns from the outset. Employing frameworks like Angular with RxJS for reactive programming drastically simplifies the complexity of managing asynchronous data flows and UI updates. This approach avoids the pitfalls of imperative DOM manipulation, leading to more maintainable and scalable codebases. When dealing with frequently changing data, embracing reactive paradigms can save significant development and debugging time.
