Bringing Data to Life: Building a Statistics View with Angular and Chart.js

Raw data, no matter how comprehensive, often remains a collection of numbers until it's presented in a way that tells a story. For our Asterisk App project, the challenge was clear: move beyond simple data dumps and provide users with a powerful, intuitive statistics view. This involved transforming complex operational data into actionable insights through visual representation.

Our goal was to implement a dedicated statistics view, a dashboard where users could quickly grasp key metrics and trends. This post dives into how we leveraged Angular for component-based architecture, Chart.js for dynamic data visualization, and Ionic for a seamless user experience, all styled efficiently with SCSS.

Architecting the Statistics View

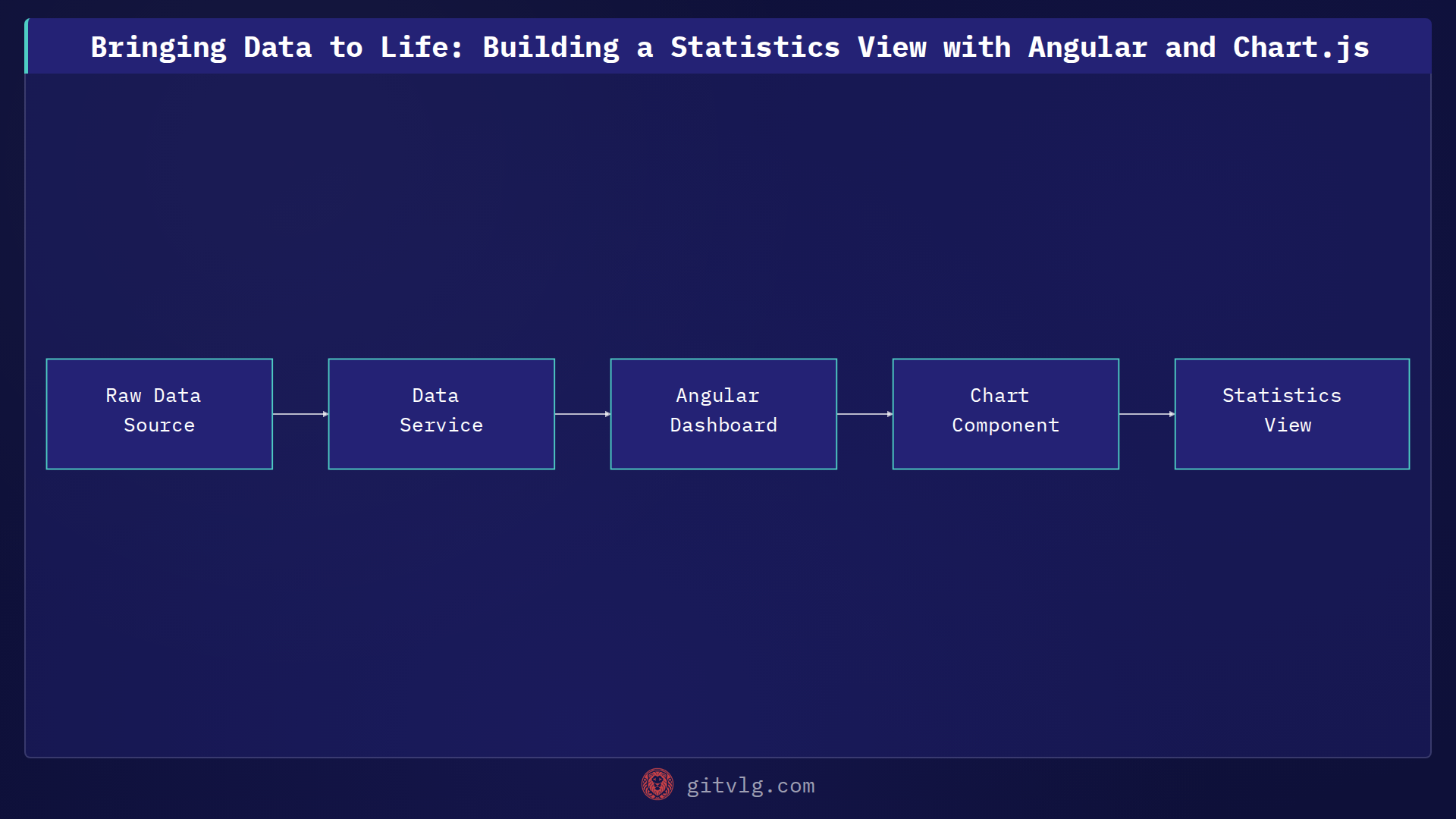

The core of our approach lay in Angular's component-based structure. We designed a main StatisticsDashboardComponent responsible for orchestrating the overall layout and fetching the raw data. This component then delegated the rendering of individual charts to smaller, reusable ChartComponent instances. This modularity ensures maintainability and allows for easy expansion with new chart types or data sets.

// statistics-dashboard.component.ts
import { Component, OnInit } from '@angular/core';
import { DataService } from './data.service';

@Component({
  selector: 'app-statistics-dashboard',
  templateUrl: './statistics-dashboard.component.html',
  styleUrls: ['./statistics-dashboard.component.scss']
})
export class StatisticsDashboardComponent implements OnInit {
  chartData: any[] = [];
  // ... other dashboard specific logic

  constructor(private dataService: DataService) { }

  ngOnInit(): void {
    this.dataService.getStatisticsData().subscribe(data => {
      this.chartData = this.transformRawDataForCharts(data);
    });
  }

  private transformRawDataForCharts(rawData: any): any[] {
    // Example: Process raw data into a format Chart.js expects
    // This might involve aggregating, filtering, or mapping data points
    return [
      { label: 'Users', value: rawData.totalUsers },
      { label: 'Sessions', value: rawData.activeSessions }
    ];
  }
}

Dynamic Data Visualization with Chart.js

For bringing our data to life, Chart.js proved to be an excellent choice. Its flexibility and wide range of chart types allowed us to create everything from bar graphs tracking daily activity to line charts illustrating long-term trends. Integrating Chart.js into an Angular component involves initializing a new Chart instance within the ngAfterViewInit lifecycle hook, ensuring the canvas element is available in the DOM.

// chart.component.ts
import { Component, Input, ViewChild, ElementRef, AfterViewInit, OnChanges, SimpleChanges } from '@angular/core';
import Chart from 'chart.js/auto'; // Using 'auto' for tree-shaking

@Component({
  selector: 'app-chart',
  template: '<canvas #chartCanvas></canvas>'
})
export class ChartComponent implements AfterViewInit, OnChanges {
  @Input() type: string = 'bar'; // e.g., 'bar', 'line', 'pie'
  @Input() data: any; // Data for Chart.js
  @Input() options: any = {}; // Chart.js options

  @ViewChild('chartCanvas') chartCanvas!: ElementRef;
  chart: Chart | undefined;

  ngAfterViewInit(): void {
    this.createChart();
  }

  ngOnChanges(changes: SimpleChanges): void {
    if (changes['data'] && this.chart) {
      this.updateChart();
    }
  }

  createChart(): void {
    if (this.chart) this.chart.destroy(); // Destroy previous instance if any
    const ctx = this.chartCanvas.nativeElement.getContext('2d');
    if (ctx) {
      this.chart = new Chart(ctx, {
        type: this.type as any,
        data: this.data,
        options: this.options
      });
    }
  }

  updateChart(): void {
    if (this.chart) {
      this.chart.data = this.data;
      this.chart.update();
    }
  }
}

Enhancing User Experience with Ionic and SCSS

The Asterisk App leverages Ionic for its robust UI components and adaptive styling. This made it straightforward to incorporate cards, headers, and grids to present the charts neatly across various device sizes. SCSS played a crucial role in ensuring a consistent and appealing look and feel for the statistics view. By defining variables and mixins, we could quickly apply branding colors and typography while keeping the stylesheets organized and maintainable.

/* statistics-dashboard.component.scss */
@use 'sass:map';
@import 'variables'; // Assuming a _variables.scss file exists

.stats-container {
  padding: var(--ion-padding, 16px);

  ion-card {
    margin-bottom: 20px;
    border-radius: var(--ion-border-radius, 8px);
    box-shadow: var(--ion-box-shadow, 0 4px 16px rgba(0, 0, 0, 0.1));

    ion-card-header {
      padding-bottom: 0;
      h2 {
        color: var(--ion-color-primary, #3880ff);
        font-size: 1.2rem;
      }
    }

    ion-card-content {
      padding-top: 10px;
      min-height: 250px; /* Ensure charts have enough space */
      display: flex;
      justify-content: center;
      align-items: center;
    }
  }

  @media (min-width: 768px) {
    display: grid;
    grid-template-columns: repeat(auto-fit, minmax(300px, 1fr));
    gap: 20px;
  }
}

Conclusion

Implementing the statistics view for the Asterisk App was a significant step in empowering our users with better data insights. By combining Angular's robust framework, Chart.js's visualization capabilities, and Ionic's UI toolkit, we successfully transformed raw operational data into interactive, easy-to-understand dashboards. The key takeaway is that effective data visualization isn't just about pretty charts; it's about making complex information accessible, driving better decision-making, and enhancing the overall user experience. When embarking on your next data-heavy feature, prioritize how the data tells its story, and leverage powerful libraries and frameworks to bring that story to life visually.
