Building Dynamic Statistics Views with Angular and Chart.js

In the asterisk-app project, a recent update focused on introducing a dedicated statistics view. This feature empowers users with visual insights into key application metrics, transforming raw data into actionable intelligence. This post details the technical approach to implementing such a view, leveraging Angular for component structure and Chart.js for powerful data visualization.

The Challenge: Bringing Data to Life

Displaying statistical data effectively is crucial for any application that generates meaningful metrics. Simply presenting tables of numbers can be overwhelming and difficult to interpret. The goal was to create an intuitive, interactive dashboard that could dynamically render various types of charts, allowing users to quickly grasp trends and performance.

Architecting the Statistics View with Angular

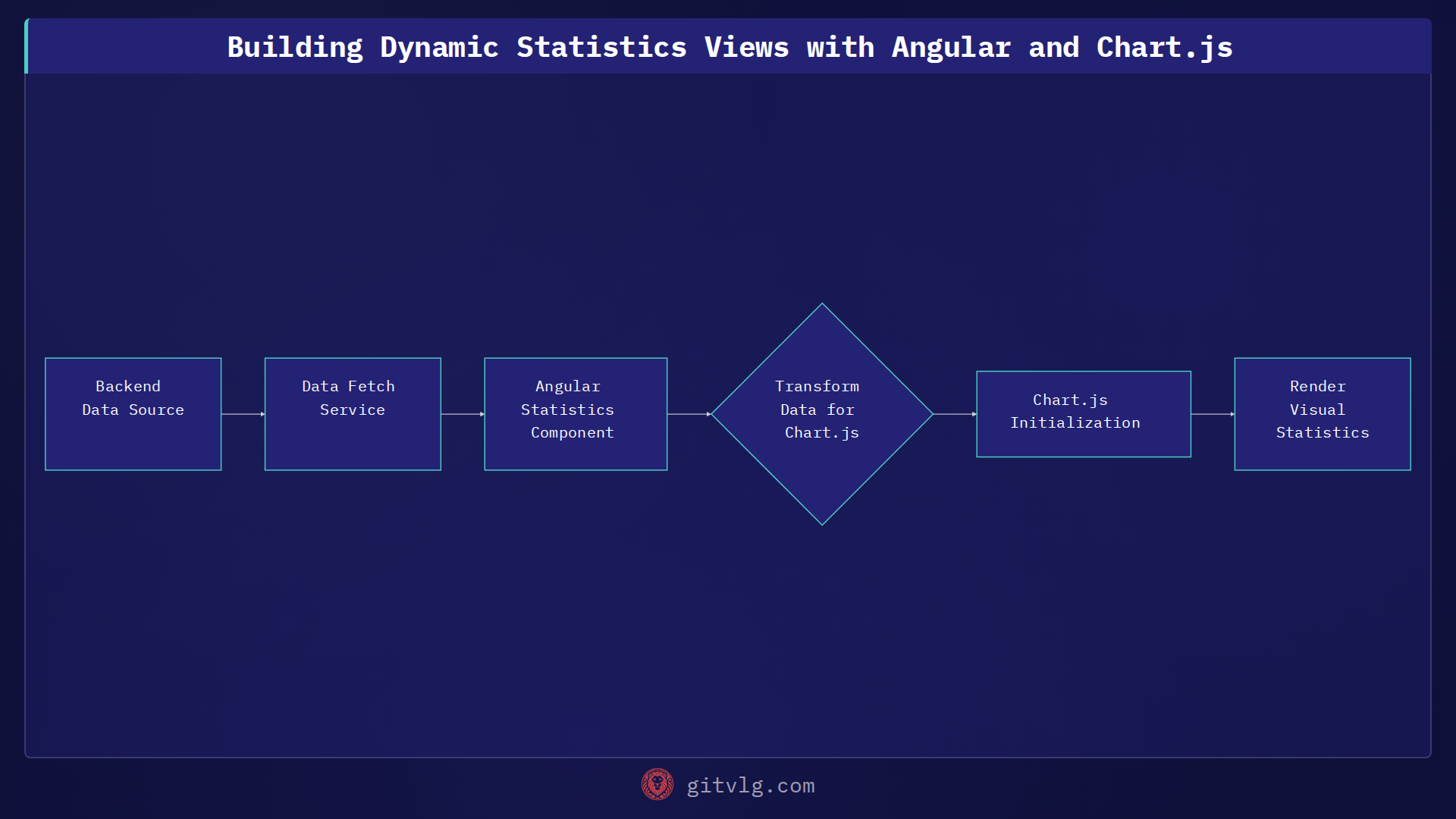

The statistics view was implemented as a new Angular component. This component acts as the orchestrator, responsible for fetching data, processing it, and then rendering it using a charting library. The modular nature of Angular allowed for a clean separation of concerns:

• Data Service: A dedicated service handles API calls to retrieve statistical data from the backend. This keeps the component lean and focused on presentation.
• View Component: The main Angular component (StatisticsComponent) integrates the data service and houses the logic for preparing data for charting.
• Chart Wrapper Components: For different chart types (e.g., bar charts, line charts), smaller, reusable Angular components could be created, each encapsulating a Chart.js instance.

Illustrative Component Structure

import { Component, OnInit } from '@angular/core';
import { DataService } from '../services/data.service';

@Component({
  selector: 'app-statistics',
  templateUrl: './statistics.component.html',
  styleUrls: ['./statistics.component.scss']
})
export class StatisticsComponent implements OnInit {
  chartData: any;

  constructor(private dataService: DataService) { }

  ngOnInit(): void {
    this.dataService.getStatistics().subscribe(data => {
      this.chartData = this.transformDataForChart(data);
      // Render chart here or pass to child component
    });
  }

  private transformDataForChart(rawData: any): any {
    // Example: Map raw data to Chart.js format
    return {
      labels: rawData.labels,
      datasets: [
        { label: 'Dataset 1', data: rawData.values1, backgroundColor: 'rgba(75, 192, 192, 0.6)' },
        { label: 'Dataset 2', data: rawData.values2, backgroundColor: 'rgba(153, 102, 255, 0.6)' }
      ]
    };
  }
}

Integrating Chart.js for Visualizations

Chart.js was chosen for its flexibility, ease of use, and extensive range of chart types. After fetching the raw statistical data, the StatisticsComponent transforms it into a format compatible with Chart.js. The library is then initialized on a <canvas> element within the component's template.

HTML Template Snippet

<div class="statistics-dashboard">
  <h2>Application Statistics</h2>
  <div class="chart-container">
    <canvas id="myChart"></canvas>
  </div>
  <!-- Add other chart containers as needed -->
</div>

Chart.js Initialization (within StatisticsComponent or a child)

import Chart from 'chart.js/auto'; // Using 'auto' for Chart.js 3+

// ... inside StatisticsComponent or a dedicated chart component
ngAfterViewInit(): void {
  if (this.chartData) {
    const ctx = document.getElementById('myChart') as HTMLCanvasElement;
    new Chart(ctx, {
      type: 'bar', // or 'line', 'pie', etc.
      data: this.chartData,
      options: {
        responsive: true,
        maintainAspectRatio: false,
        scales: {
          y: { beginAtZero: true }
        }
      }
    });
  }
}

Enhancing Aesthetics with SCSS

To ensure the statistics view was not just functional but also visually appealing and consistent with the application's theme, SCSS (Sass) was used for styling. This allowed for advanced features like variables, mixins, and nested rules, streamlining the styling process for chart containers, legends, and overall layout.

.statistics-dashboard {
  padding: 1.5rem;
  background-color: var(--ion-color-light);
  border-radius: 8px;
  box-shadow: 0 2px 4px rgba(0, 0, 0, 0.1);

  h2 {
    color: var(--ion-color-primary);
    margin-bottom: 1.2rem;
    font-size: 1.8rem;
  }

  .chart-container {
    position: relative;
    height: 400px; /* Define chart height */
    width: 100%;
    margin-bottom: 1.5rem;
    background-color: #ffffff;
    border-radius: 6px;
    padding: 1rem;
  }
}

The Result: An Insightful Dashboard

The implementation successfully delivered a dynamic and interactive statistics dashboard. Users can now visualize complex data trends at a glance, allowing for more informed decision-making within the asterisk-app.

Actionable Takeaway

When building data visualization features in Angular, consider a modular approach: use services for data fetching, dedicated components for data transformation, and leverage a robust charting library like Chart.js. Remember to apply consistent styling with Sass for a polished user experience. This separation makes the feature maintainable, scalable, and a pleasure to interact with.
